Model BL-30NM/BL-30NMZ Output type NPN+ Analog Output Measurement center distance 30mm Measurement range ±5mm Repeatability 10um linearity ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ50um protection circuit power polarity reverse protection, Output short-circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% power consumption current less than 40mA (when the power supply voltage is 24VDC) less than 60mA (voltage voltage 12V)
Model BL-100NMZ Output type NPN Output Measurement center distance 100mm Measurement range ±35mm Repeatability 100um straightness ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter approx. 50um Protection circuit Power polarity reverse protection, output short circuit or overload protection Environmental brightness Incandescent lamp: The light receiving surface illumination is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% current consumption is less than 40mA (power supply voltage 24VDC) 60mA (voltage voltage 12VDC) light source
Model BLG-30N-485 Output Type NPN+485 Output Measurement Center Distance 30mm Measurement range 8mm Linear accuracy ±0.1%F.S.(F.S.=8mm) Resolution 2um (4W in fast mode) Temperature drift characteristic ±0.08%F.S./°C Response time Fast mode: max.5ms: Average sampling times 1 (1ms) + Sensitivity switching time (max.4ms) Standard mode: max.12.5mss Average sampling times 16 (8.5ms) + Sensitivity switching time (max.4ms) High mode
Model BL-50NM/BL-50NMZ Output type NPN+ Analog Output Measurement Center distance 50mm Measurement range ±15mm Repeatability 30um linearity ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ70um protection Circuit power polarity reverse protection, Output short circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% power consumption current less than 40mA (power supply voltage 24VDC) less than 60mA (voltage voltage 12
Model BLG-250N-485 Output Type NPN+485 Output Measurement Center Distance 250mm Measurement range 300mm Linear accuracy ±0.3% F.S. (F.S. =300mm) Resolution 75um Temperature drift characteristic ±0.08% F.S. /°C Response time Fast mode: max.7.5ms: Standard mode: max.18ms High-hour mode: max.54ms: Sampling period 500 (250 should: 75.) / 1000/1500/2000ns ※ Factory value: 50

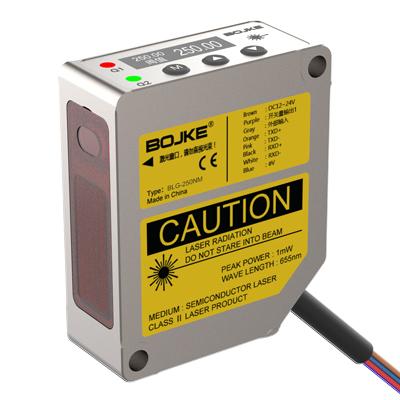

Model BLG-250NM Output Type NPN Output Measurement Center Distance 250mm Measurement range 300mm Linear accuracy ±0.3%F.S.(F.S.=300mm) Resolution 75um Temperature drift characteristic ±0.08%F.S./°C Response time Fast mode: max.7.5ms: Standard mode: max.18ms High time mode: max.54ms: Sampling period 500 (250 should: 75.) /1000/1500/2000ns※ Factory value: 500PS (250mm model: 75. Indicator distance

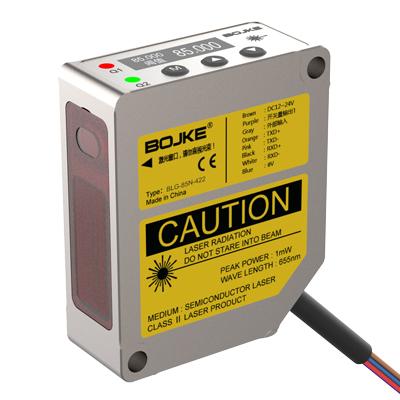

Model BLG-85N-485 Output Type NPN+485 Output Measurement Center distance 85mm Measurement range 40mm Linear accuracy ±0.1%F.S.(F.S.=40mm) Resolution 10um (15pm in fast mode) Temperature drift characteristic ±0.08%F.S./°C Response time Fast mode: max.5ms: Average sampling times 1 (1ms) + Sensitivity switching time (max.4ms) Standard mode: max.12.5mss Average sampling times 16 (8.5ms) + sensitivity switching time (max.4ms)
Model BLG-85NM Output Type NPN+ Analog Output Measurement Center distance 85mm Measurement range 40mm Linear accuracy ±0.1%F.S.(F.S.=40mm) Resolution 10um (15pm in fast mode) Temperature drift characteristic ±0.08%F.S./°C Response time Fast mode: max.5ms: Average sampling times 1 (1ms) + Sensitivity switching time (max.4ms) Standard mode: max.12.5mss Average sampling times 16 (8.5ms) + Sensitivity switching time (max.4ms) High

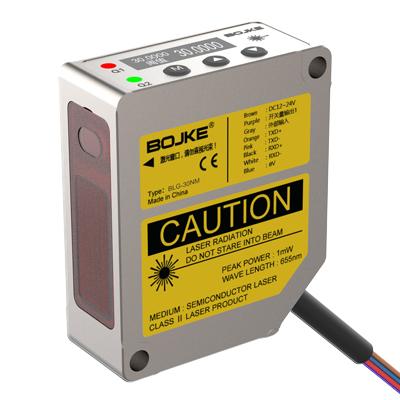

Model BLG-30NM Output Type NPN+ Analog Output Measurement Center distance 30mm Measurement range 8mm Linear accuracy ±0.1%F.S.(F.S.=8mm) Resolution 2um (4W in fast mode) Temperature drift characteristic ±0.08%F.S./°C Response time Fast mode: max.5ms: Average sampling times 1 (1ms) + Sensitivity switching time (max.4ms) Standard mode: max.12.5mss Average sampling times 16 (8.5ms) + Sensitivity switching time (max.4ms) High mode: ma
