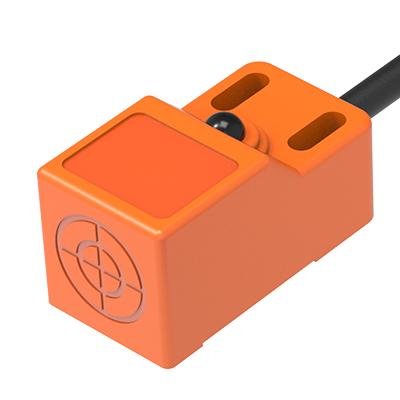

SQ08F-2.5NOF

Square proximity sensor

Model SQ08F-2.5NOF Output type NPN Output Detection Distance 2.5mm detection direction Top Detection Connection Mode Lead out power supply voltage 10 to 30VDC Maximum load current 150mA Consumption current less than 10mA Leakage current less than 0.01mA Residual voltage less than 1.5VC Switching frequency 800HZ Protection circuit short circuit Protection IP Protection Level IP67 Shell Material Plastic detection surface material PC

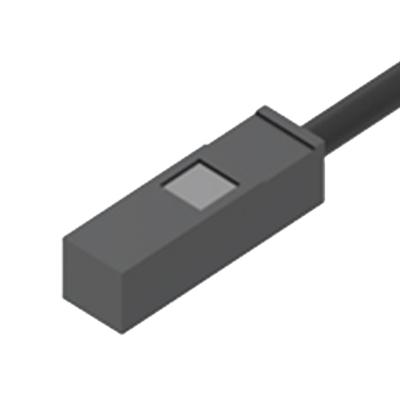

SQ08H-2.5NOF

Square proximity sensor

Model SQ08H-2.5NOF Output type NPN Output Detection Distance 2.5mm Detection direction Front End Detection Connection Mode Lead out power supply voltage 10 to 30VDC Maximum load current 150mA Consumption current less than 10mA Leakage current less than 0.01mA Residual voltage less than 1.5VC Switching frequency 800HZ Protection circuit short circuit Protection IP Protection Level IP67 Shell Material Plastic detection surface material PC

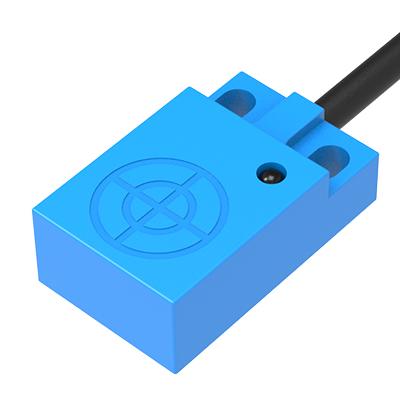

QS05-N

Square proximity sensor

Model QS05-N Output type NPN Output Detection distance 5mm Detection direction Front-end detection Connection Method 3-core cable Power supply voltage 12 to 24VDC Maximum output current 150mA Consumption current less than 10mA Leakage current less than 0.01mA Residual voltage 1.5V Reaction frequency 500HZ Protection circuit short circuit protection IP Protection level IP67 Size Long x Model x High 28x17x17mm Repetition accuracy < 1.0% (Sr)

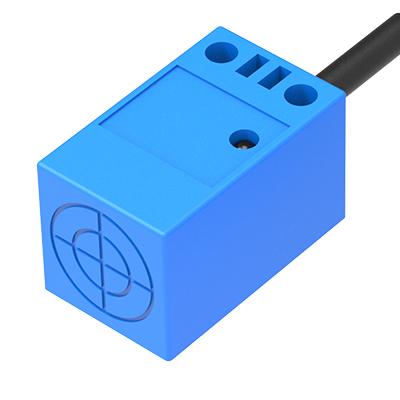

SND04-N

Square proximity sensor

Model SND04-N Output type NPN Output Detection distance 4mm detection direction Top Detection Connection Method 3-core cable Power supply voltage 12 to 24VDC Maximum output current 150mA Consumption current less than 10mA Leakage current less than 0.01mA Residual voltage 1.5V Reaction frequency 500HZ Protection circuit short circuit protection IP Protection level IP6 7 Size Long x style x High 30x18x10mm Repetition accuracy < 1.0% (Sr)

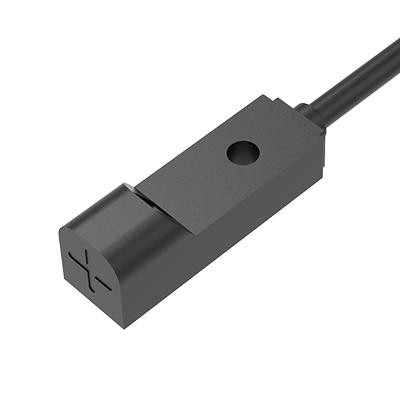

SN04-N

Square proximity sensor

Model SN04-N Output type NPN Output Detection distance 4mm detection direction Front-end detection Connection Method 3-core cable Power supply voltage 12 to 24VDC Maximum output current 150mA Consumption current less than 10mA Leakage current less than 0.01mA Residual voltage 1.5V Reaction frequency 500HZ Protection circuit short circuit protection IP Protection level IP67 Size Long x Style x High 35x18x18mm Repetition accuracy < 1.0% (Sr)

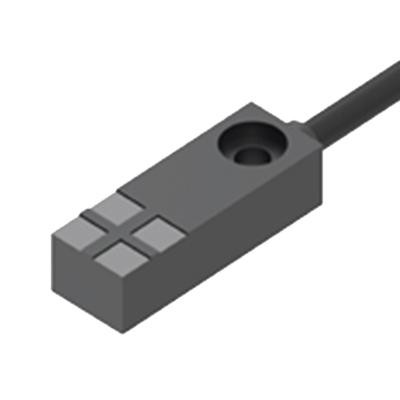

PR-06ND

Square proximity sensor

Model PR-06ND Output type NPN Output Detection Distance 1.5mm Detection direction Top Detection Connection Method 3-core cable diameter 4mm Power voltage 10 to 30VDC Maximum output current 200mA Consumption current less than 8mA Leakage current less than 0.1mA Residual voltage less than 1.5VDC Reaction frequency 500HZ Protection circuit power polarity Reverse protection IP Protection Class IP67 Dimensions Long x style x Height 20.8x5.8x5.6mm Remarks Supply voltage 5V products are available

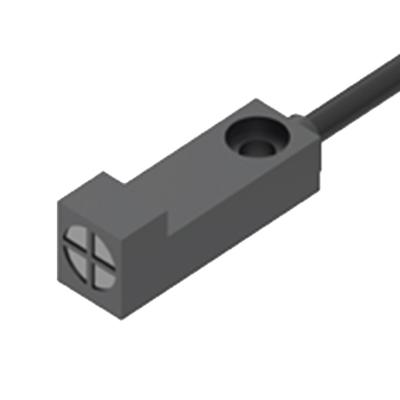

PR-06N

Square proximity sensor

Model PR-06N Output type NPN Output Detection Distance 1.5mm Detection direction Front-end detection Connection Method 3-core cable diameter 4mm Power voltage 10 to 30VDC Maximum output current 200mA Consumption current less than 8mA Leakage current less than 0.1mA Residual voltage less than 1.5VDC Reaction frequency 500HZ Protection circuit Power polarity is reversed Protection IP Protection Level IP67 Dimension Long x style x Height 20.8x5.8x5.6mm Remarks Supply voltage 5V products are available
PR-08N

Square proximity sensor

Model PR-08N Output type NPN Output Detection Distance 2.5mm Detection direction Front-end detection Connection Method 3-core cable diameter 4mm Power voltage 10 to 30VDC Maximum output current 200mA Consumption current less than 8mA Leakage current less than 0.1mA Residual voltage less than 1.5VDC Reaction frequency 500HZ Protection circuit Power polarity is reversed Protection IP Protection Level IP67 Dimension Long x Type x Height 26.5x8x9mm Remarks Supply voltage 5V products
PR-08ND

Square proximity sensor

Model PR-08ND Output type NPN Output Detection Distance 2.5mm Detection direction Top Detection Connection Method 3-core cable diameter 4mm Power voltage 10 to 30VDC Maximum output current 200mA Consumption current less than 8mA Leakage current less than 0.1mA Residual voltage less than 1.5VDC Reaction frequency 500HZ Protection circuit power polarity Reverse protection IP Protection Level IP67 Dimensions Long x Type x Height 25x8x6mm Remarks Supply voltage 5V products
