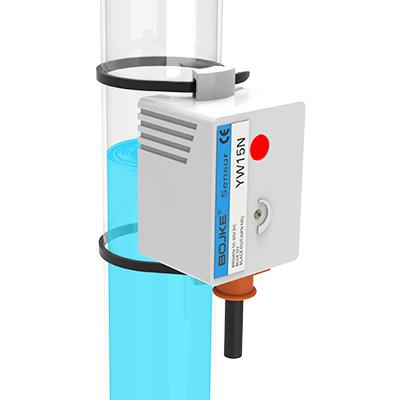

Model YW15N Output type NPN Output Repeat distance accuracy ±0.2mm or less Detecting object Liquid Action indicator Action indicator (red) Power supply voltage 10 to 30VDC difference 0.6 to 5mm Current Consumption 12mA or less Applicable pipe wall thickness 1.5mm or less φ6 to φ13mm protection circuit Surge protection circuit, short circuit protection, polarity Reverse protection Vibration (durability) 10~55HZ up and down amplitude 1.5mmX, Y, Z 2h in each direction Impact (durability) 500m/sXYZ three times in each direction Protection Construction IP66 connection mode Lead out type (standard cable length 2M)

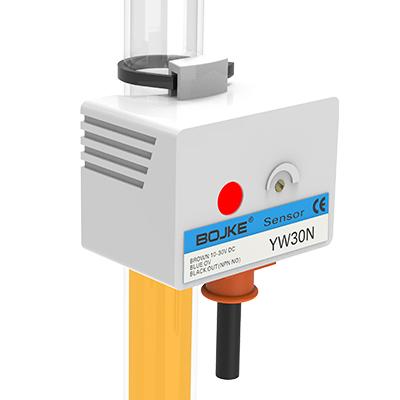

Model YW30N Output type NPN Output Repeat distance accuracy ±0.2mm or less Detection object Liquid Action indicator Action indicator (red) Power supply voltage 10 to 30VDC difference 0.3 to 3mm Current consumption 12mA or less Applicable pipe wall thickness 2mm or less φ14 to φ26mm Protection circuit Surge protection circuit, short circuit protection, polarity reverse Protection vibration (durability) 10~55HZ up and down amplitude 1.5mmX, Y, Z 2h in each direction Impact (durability) 500m/sXYZ three times in each direction Protection Construction IP66 connection mode Lead out type (standard line length 2M)
Model YW-613 Output Type NPN Output Action mode ON when the light is blocked ON when the light is on the light mode Detects the liquid in the pipe of the object (if the liquid has high viscosity or suspension, it may not be detected) Action indicator Red Status indicator. Green output indicator Power voltage 12~24VDC Connection mode Lead out Standard conductor length 2m Average current consumption less than 30mA, The maximum value below 80mA is suitable for the transparent conduit light source GaAs infrared light-emitting diode (940mm) with an outer diameter φ6-13mm (thickness 1mm). Vibration (durability) 10~500HZ single amplitude 1.0m
