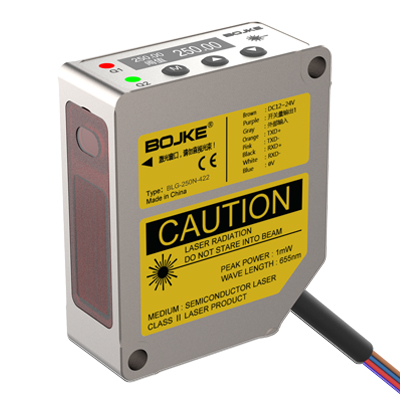

| Model | BLG-250N-485 |
|---|---|
| Output type | NPN+485 output |
| Measure the center distance | 250mm |
| Measuring range | 300mm |
| Straight-line accuracy | ±0.3% F.S. (F. S. =300mm) |
| resolution | 75um |
| Temperature drift characteristics | ±0.08% F. S. /°C |
| Response time | Quick Mode: max. 7.5ms： Standard mode: max. 18ms High time mode: max. 54ms： |
| Sampling period | 500 (250 should: 75. )/1000 /1500 /2000ns ※Factory value: 500PS (250mm type: 75. "） |
| Light | Distance indicator: LED light display on the operation panel Output indicator: 0K state: Q1, Q2 indicator (orange) on |
| MF input | Laser off, external teach-in, sample holding and other functions can be selected Response time: less than 3ms |
| Protection circuits | Reverse connection protection, overcurrent protection |
| Ambient brightness | Incandescent lamp: the illumination of the light-receiving surface is below 3000lx |
| Supply voltage | 12-24VDC±10%, floating P-P 10% or less |
| Consumes current | 40mA or less (at 24V DC supply voltage) 60mA or less (at 12V DC with voltage voltage) |
| Light source | Red semiconductor laser Maximum output: 1mW Beam wavelength: 655nm |
| Housing material | Case: PBT Lens: PMMA |
| Ambient temperature | -10-+45℃ |
| Warm-up time | max. 15 minutes |
| Level of protection | IP67 |
Features: OLED Chinese operation interface, resolution 75um
Detection distance: 250mm, full scale 300mm
Output mode: NPN+485 communication output
