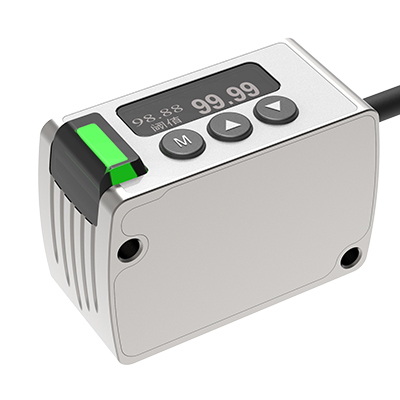

BL-100NM/BL-100NMZ

BL-100NM/BL-100NMZ
  • Technical Parameter
  • Dimensional structure
  • Performance characteristics
ModelBL-100NMZ
Output typeNPN output
Measure the center distance100mm
Measuring range
±35mm
Repeatability100um
linearity±0.1%F.S
Temperature characteristics0.03%F.S./℃
Beam diameter約φ50um
Protection circuitsPower supply reverse polarity protection, output short circuit or overload protection
Ambient brightnessIncandescent lamp: the illumination of the light-receiving surface is below 3000lx
Supply voltage12-24VDC±10%, floating P-P 10% or less
Consumes current40mA or less (at 24V DC supply voltage) 60mA or less (at 12V DC with voltage voltage)
Light sourceRed semiconductor laser class 2 Maximum output: 1mW Beam wavelength: 655nm
Output actionsON-on/non-in-light ON can be switched
Housing materialBody shell: aluminum casting front cover acrylic base
Ambient temperature-10-+50℃


Features: Chinese operation interface, small size/small light spot/multiple detection modes are optional

Detection distance: repeatability 100um;

Measuring center distance: 100mm;

Measuring range: ±35mm

Output mode: NPN, analog voltage + current output
