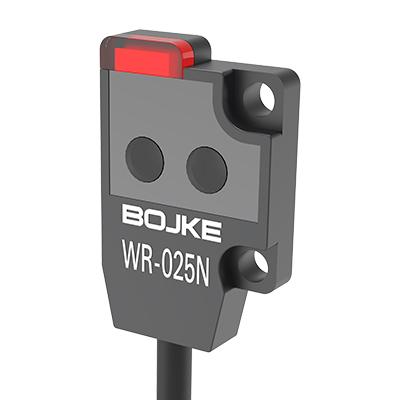

WR-025N

Thin photoelectric sensor

Model WR-025N Output Type NPN Output Detection Direction Frontal Reflection Detection Object Working Distance Below 15% Detection Distance 1-22mm Response Time 1ms Indicator Light Power Indicator Light: Red Output Indicator Light: Green Maximum Output Current 50mA Consumption Current Less than 25mA Power Supply Voltage DC12-24V Output Light Source 650nm Red Modulation Light Environmental Temperature Action: -25-+70 ℃ Storage: -40-85 ℃ (No Ice, No Dew) Connection Method Wire Lead-out Type (Standard wire length 2M)

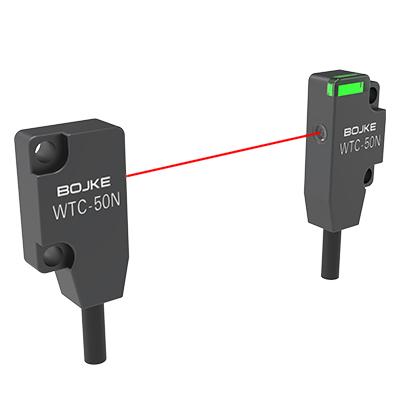

WTC-50N

Thin photoelectric sensor

Model WTC-50N Output Type NPN Output Detection Direction Side to Side Detection Object Common Working Distance Below 15% Detection Distance 500mm Response Time 1ms Indicator Light Power Indicator Light: Red Output Indicator Light: Green Maximum Output Current 50mA Consumption Current Less than 25mA Power Supply Voltage DC12-24V Output Light Source 650nm Red Modulation Light Environmental Temperature Action: -25-+70 ℃ Storage: -40-85 ℃ (No Ice, No Dew) Connection Method Wire Lead-out Type (Standard wire length 2M)

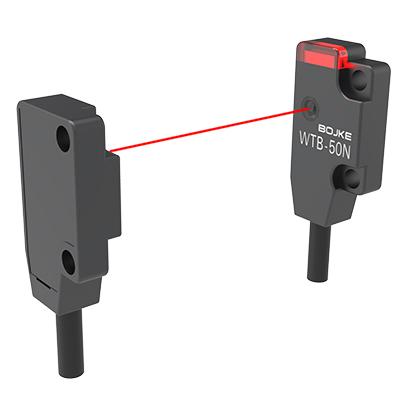

WTB-50N

Thin photoelectric sensor

Model WTB-50N Output Type NPN Output Detection Direction Front facing Detection Object Common Working Distance Below 15% Detection Distance 500mm Response Time 1ms Indicator Light Power Indicator Light: Red Output Indicator Light: Green Maximum Output Current 50mA Consumption Current Less than 25mA Power Supply Voltage DC12-24V Output Light Source 650nm Red Modulation Light Environmental Temperature Action: -25-+70 ℃ Storage: -40-85 ℃ (No Ice, No Dew) Connection Method Wire Lead-out Type (Standard wire length 2M)

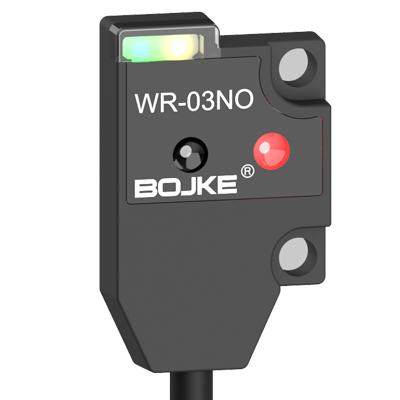

WR-03NO

Thin photoelectric sensor

Model WR-03NO Output Type NPN Output Detection Direction Frontal Reflection Detection Object Working Distance Below 15% Detection Distance 1-30mm Response Time 1ms Indicator Light Power Indicator Light: Red Output Indicator Light: Green Maximum Output Current 50mA Consumption Current Less than 25mA Power Supply Voltage DC12-24V Output Light Source 650nm Red Modulation Light Environmental Temperature Action: -25-+70 ℃ Storage: -40-85 ℃ (No Ice, No Dew) Connection Method Wire Lead-out Type (Standard wire length 2M)

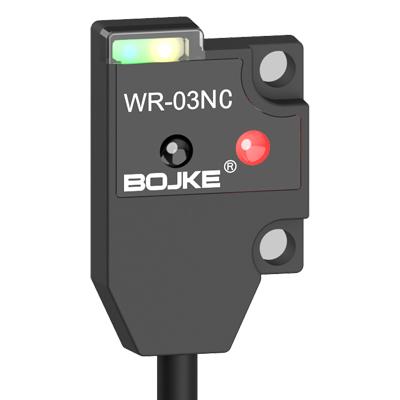

WR-03NC

Thin photoelectric sensor

Model WR-03NC Output Type NPN Output Detection Direction Frontal Reflection Detection Object Working Distance Below 15% Detection Distance 1-30mm Response Time 1ms Indicator Light Power Indicator Light: Red Output Indicator Light: Green Maximum Output Current 50mA Consumption Current Less than 25mA Power Supply Voltage DC12-24V Output Light Source 650nm Red Modulation Light Environmental Temperature Action: -25-+70 ℃ Storage: -40-85 ℃ (No Ice, No Dew) Connection Method Wire Lead-out Type (Standard wire length 2M)

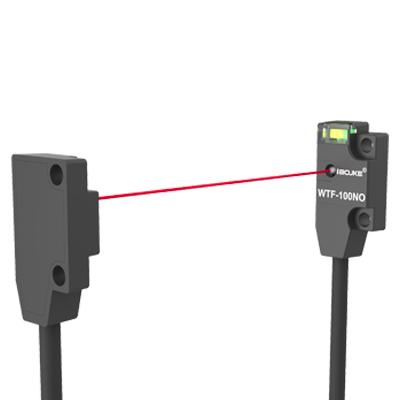

WTF-100NO

Thin photoelectric sensor

Model WTF-100NO Output type NPN Output detection direction Front facing detection object φ 1mm opaque object detection distance 1m reaction time 1ms indicator light power indicator light: red output indicator light: green maximum output current 50mA consumption current less than 25mA power supply voltage DC12-24V output light source 650nm red modulation light ambient temperature action: -25-+70 ℃ Storage time: -40-85 ℃ (non icing, non condensation) Connection method Wire lead out type (standard wire length 2M)

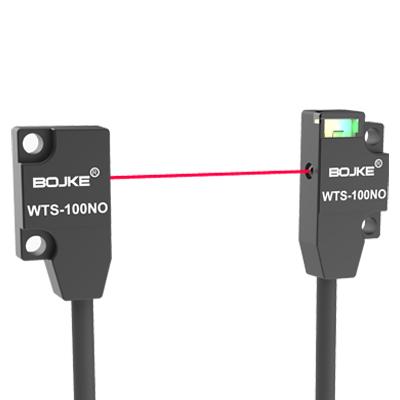

WTS-100NO

Thin photoelectric sensor

Model WTS-100NO Output type NPN Output detection direction Side facing detection object φ 1mm opaque object detection distance 1m reaction time 1ms indicator light power indicator light: red output indicator light: green maximum output current 50mA consumption current less than 25mA power supply voltage DC12-24V output light source 650nm red modulation light ambient temperature action: -25-+70 ℃ Storage time: -40-85 ℃ (non icing, non condensation) Connection method Wire lead out type (standard wire length 2M)
