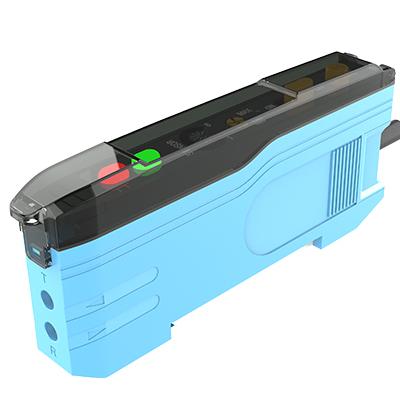

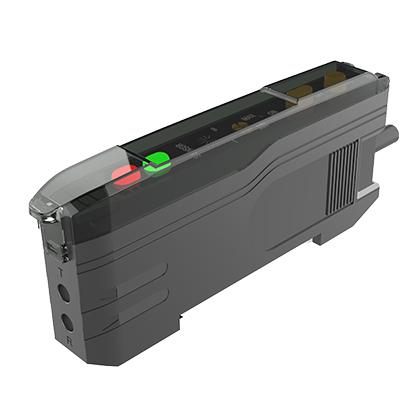

Model ER3-HP output type PNP output detection method: diffuse reflection, detection distance for reflection (determined by fiber type): 200mm diffuse reflection, reflection distance for reflection: 1200mm normal open/normal closed switchable response time: less than 500us, protection circuit power polarity reverse protection; Output short circuit or overload protection output delay dial delay, ON: 40ms delay OFF: Normal output power voltage 12-24DC ± 10%, floating P-P below 10%, output light source red, 4-element LED body consumption current less than 30mA, ambient temperature -25 to+55 ℃, no freezing
Model ER3-H1 output type NPN output detection method: diffuse reflection, detection distance for reflection (determined by fiber type): 200mm, and reflection distance for reflection: 1200mm. Output state: normally open/normally closed, switchable reaction time: less than 50us. Protection circuit: polarity reversal protection; Output short circuit or overload protection output delay dial delay, ON: 40ms delay OFF: Normal output power voltage 12-24DC ± 10%, floating P-P below 10%, output light source red, 4-element LED body consumption current less than 30mA, ambient temperature -25 to+55 ℃, no freezing
Model ER3-H1P output type PNP output detection method: diffuse reflection, detection distance for reflection (determined by fiber type): 200mm, and reflection distance for reflection: 1200mm. Output state: normally open/normally closed, switchable reaction time: less than 50us. Protection circuit: polarity reversal protection; Output short circuit or overload protection output delay dial delay, ON: 40ms delay OFF: Normal output power voltage 12-24DC ± 10%, floating P-P below 10%, output light source red, 4-element LED body consumption current less than 30mA, ambient temperature -25 to+55 ℃, no freezing
Model ER3-H Output Type NPN Output Detection Method Diffuse Reflection, Opposite Reflection (determined by fiber type) Detection Distance Diffuse Reflection 200mm, Opposite Reflection 1200mm Output State Normally Open/Normally Closed Switchable Response Time Less than 500us Switching Frequency: 1KHZ Protection Circuit Power Polarity Reverse Protection; Output short circuit or overload protection output delay normal output/output extension/delayed output/primary output, four output methods available: power supply voltage 12-24DC ± 10%, floating P-P below 10%, output light source red, 4-element LED body consumption current less than 30mA, ambient temperature -2
