HO10N

Blanking detection sensor

Model HO10N Output type NPN Output hole Size 10.5mm Minimum detection object 0.6mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO12N

Blanking detection sensor

Model HO12N Output type NPN Output hole Size 12.5mm Minimum detection object 0.8mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO15N

Blanking detection sensor

Model HO15N Output type NPN Output hole Size 15.5mm Minimum detection object 1.0mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO16N

Blanking detection sensor

Model HO16N Output type NPN Output hole Size 16.5mm Minimum detection object 1.2mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO22N

Blanking detection sensor

Model HO16N Output type NPN Output hole Size 22.5mm Minimum detection object 1.5mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO25N

Blanking detection sensor

Model HO25N Output type NPN Output hole Size 25.5mm Minimum detection object 2.0mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO30N

Blanking detection sensor

Model HO30N Output type NPN Output hole Size 30.5mm Minimum detection object 2mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67
HO35N

Blanking detection sensor

Model HO35N Output type NPN Output hole Size 35.5mm Minimum detection object 2.0mm±1% Detection object Magnetic metal (the minimum detection object size increases when non-magnetic metal is used) Power voltage 10 to 30VDC Response frequency 10 Hz Indicator Action indicator (red) Leakage current less than 0.8MA Protection circuit Surge protection circuit, Short circuit protection, polarity reverse protection connection mode Export extraction type housing material PC protection construction IP67

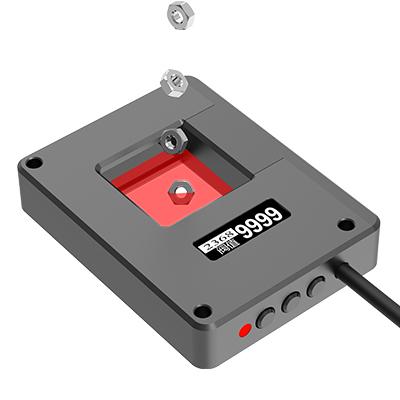

CK-25ZW

Blanking detection sensor

Model CK-25ZW Output type NPN Output power supply voltage 12~24VDC±10%, floating p-p10% Power consumption less than 750mW light source infrared 940nm Sensitivity 5 levels adjustable working mode Single output/count output Detection output NPN collector open output, Maximum input current 100mA Maximum external voltage 30VDC, residual voltage less than 1V Output State On/Off Switchable delay function Normal output/Output delay/one-time output, three output modes Optional two delay time adjustable: 1ms to 9999ms Response time less than 900us External
