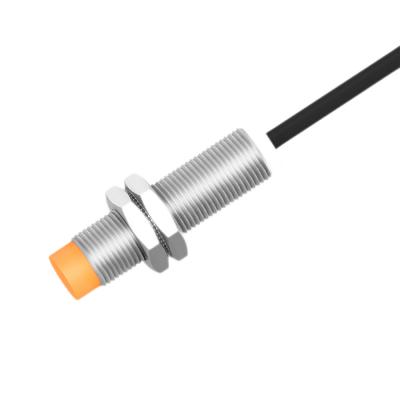

SG12-02NOF

High temperature proximity sensor

Model SG12-02NOF Output Type NPN Normally open, flush size M12 Detection distance 2mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-04NOF

High temperature proximity sensor

Model SG12-04NOF Output Type NPN Normally open, flush size M12 Detection distance 4mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-02NCF

High temperature proximity sensor

Model SG12-02NCF Output Type NPN Normally closed, flush size M12 Detection distance 2mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-04NCF

High temperature proximity sensor

Model SG12-04NOF Output type NPN Normally closed, flush size M12 Detection distance 4mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67

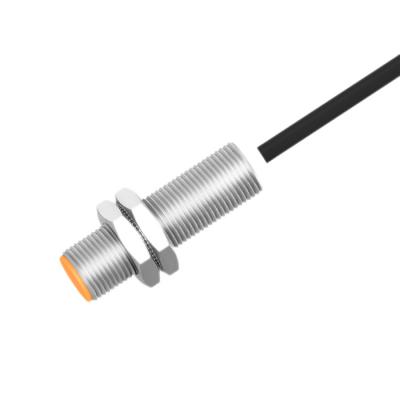

SG12-04NON

High temperature proximity sensor

Model SG12-04NON Output type NPN Normally open, non-flush size M12 Detection distance 4mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-08NON

High temperature proximity sensor

Model SG12-08NON Output type NPN Normally open, non-flush size M12 Detection distance 8mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-04NCN

High temperature proximity sensor

Model SG12-04NON Output type NPN Normally closed, non-flush size M12 Detection distance 4mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
SG12-08NCN

High temperature proximity sensor

Model SG12-08NCN Output type NPN normally closed, non-flush size M12 Detection distance 8mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67

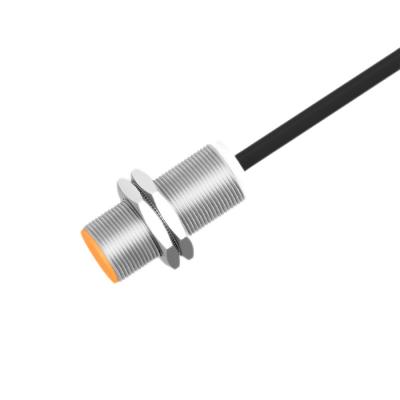

SG18-05NOF

High temperature proximity sensor

Model SG18-05NOF Output Type NPN Normally open, flush size M18 Detection distance 5mm±10% Housing material Nickel-copper alloy Operating voltage 10~30VDC(Ripple< 10%) pressure drop < 1.5V load current 200mA no-load current < 10mA leakage current 0.01mA switching frequency 1KHZ repetition accuracy < 3.0%(Sr) hysteresis < 15%(Sr) induction surface material PBT ambient temperature -25~+120℃ protection class IP67
