BL-50N-485/BL-50NZ-485

Laser displacement sensor

Model BL-50N-485/BL-50NZ-485 Output type NPN+485 Communication output Measurement Center Distance 50mm Measurement range ±15mm Repeatability 30um Straightness ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ70um Protection Circuit power polarity reverse protection, Output short circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% power consumption current less than 40mA (power supply voltage 24VDC) 60mA
BL-50N/BL-50NZ

Laser displacement sensor

Model BL-50N/BL-50NZ Output type NPN Output Measurement center distance 50mm Measurement range ±15mm Repeatability 30um linearity ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter approx. 70um Protection circuit Power polarity reverse protection, output short circuit or overload protection Environmental brightness Incandescent lamp: The power supply voltage below 3000lx is 12-24VDC±10%, and the floating P-P10% consumption current below 40mA (when the power supply voltage is 24VDC) is below 60mA (when the voltage voltage is 12VDC)
BL-30N/BL-30NZ

Laser displacement sensor

Model BL-30N/BL-30NZ Output type NPN Output Measurement center distance 30mm Measurement range ±5mm Repeatability 10um linearity ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ50um Protection circuit Power polarity reverse protection, output short circuit or overload protection Environmental brightness Incandescent lamp: The illuminated surface is less than 3000lx. The power supply voltage is 12-24VDC±10%, and the floating P-P10% consumes current less than 40mA (when the power supply voltage is 24VDC) and less than 60mA (when the voltage voltage is 12VDC)
BGL-235NZ/ BGL-235NMZ/ BGL-235NZ -485

Laser displacement sensor

Model NPNBGL-235NZNPN+ Analog BGL-235NMZNPN+RS485BGL-235NZ-485 Test Method Diffuse reflection reference (center) Distance 235mm Measurement range (F.S.) 35~435m full scale 400mm repetition accuracy 35-135mm: 0.1mm135-235mm: 0.3mm235-335mm: 0.8mm335-500mm: 1.5mm Linear accuracy 35-135mm: 0.1mm135-235mm: 0.3mm Temperature drift characteristics

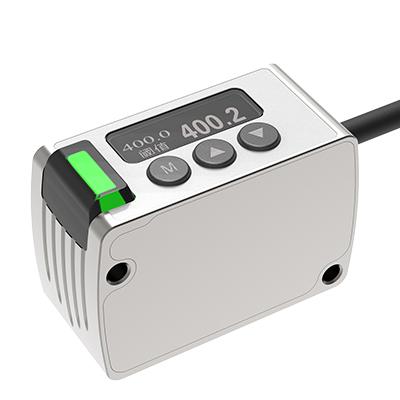

BL-400N-485/BL-400NZ-485

Laser displacement sensor

Model BL-400N-485/BL-400NZ-485 Output type NPN+485 Communication Output Measurement Center Distance 400mm Measurement range ±200mm Repeatability 400um(measuring distance 200-400mm)800um (measuring distance 400-600mm) Straightness ±0.2%F.S Temperature characteristic Property 0.03%F.S./℃ Beam diameter about φ50um protection circuit power polarity reverse protection, output short circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface lighting degree below 3000lx power supply voltage 12-24VDC±1
BL-400NM/BL-400NMZ

Laser displacement sensor

Model BL-400NM/BL-400NMZ Output type NPN+ Analog Output Measurement center distance 400mm Measurement range ±200mm Repeatability 400um(measuring range 200 to 400mm)800um (measuring range 400 to 600mm) Linearity ±0.2%F.S Temperature characteristic 0.03%F. S./ ° C Beam diameter about φ50um protection circuit power polarity reverse protection, output short circuit or overload protection Environmental brightness incandescent lamp: illuminated surface lighting degree below 3000lx power supply voltage 12-24VDC±10%, floating P-P
BL-400N/BL-400NZ

Laser displacement sensor

Model BL-400N/BL-400NZ Output type NPN Output Measurement Center distance 400mm Measurement range ±200mm Repeatability 400um(measuring range 200-400mm)800um (measuring range 400-600mm) Straightness ±0.2%F.S Temperature characteristic 0.03%F.S./ ° C Beam Diameter about φ50um protection circuit power polarity reverse protection, output short circuit or overload protection Environmental brightness incandescent lamp: the light surface lighting degree below 3000lx power supply voltage 12-24VDC±10%, floating P-P10% less

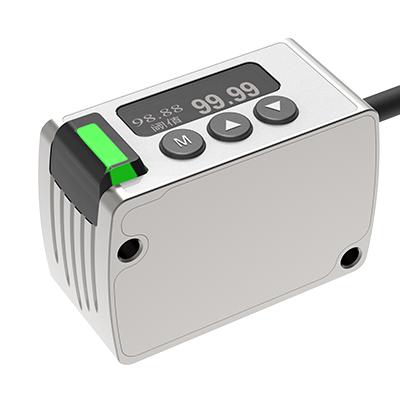

BL-100N-485/BL-100NZ-485

Laser displacement sensor

Model BL-100N-485/BL-100NZ-485 Output type NPN+485 Communication output Measurement center Distance 100mm Measurement range ±35mm Repeatability 100um straightness ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ50um protection Circuit power polarity reverse protection, Output short circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% power consumption current less than 40mA (power supply voltage 24VDC) 6
BL-100N/BL-100NZ

Laser displacement sensor

Model BL-100N/BL-100NZ Output type NPN Output Measurement center distance 100mm Measurement range ±35mm Repeatability 100um straightness ±0.1%F.S Temperature characteristic 0.03%F.S./℃ Beam diameter about φ50um protection circuit power polarity reverse protection, Output short circuit or overload protection Environmental brightness incandescent lamp: the illuminated surface is less than 3000lx power supply voltage 12-24VDC±10%, floating P-P10% power consumption current less than 40mA (power supply voltage 24VDC) 60mA (voltage voltage 12VD
