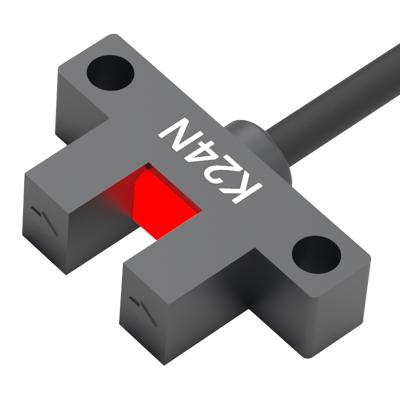

Model K24N output type NPN output detection object 1.2x0.8mm opaque object detection distance 5mm groove width response frequency 2KHZ repetition accuracy below 0.03mm indicator light action display light (red) protection circuit surge protection circuit, Polarity reverse protection action configuration is equipped with two independent outputs (ON when blocking and ON when entering), power supply voltage DC5-24V, output light source GaAs infrared light emitting diode (940nm), ambient temperature action: -25-+70 ℃, storage: -40-85 ℃ (non icing and non condensation), connection method, wire lead out type (standard

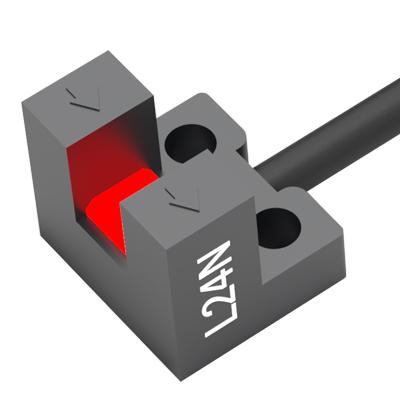

Model L24N output type NPN output detection object 1.2x0.8mm opaque object detection distance 5mm groove width response frequency 2KHZ repetition accuracy below 0.03mm indicator light action display light (red) protection circuit surge protection circuit, Polarity reverse protection action configuration is equipped with two independent outputs (ON when blocking and ON when entering), power supply voltage DC5-24V, output light source GaAs infrared light emitting diode (940nm), ambient temperature action: -25-+70 ℃, storage: -40-85 ℃ (non icing and non condensation), connection method, wire lead out type (standard

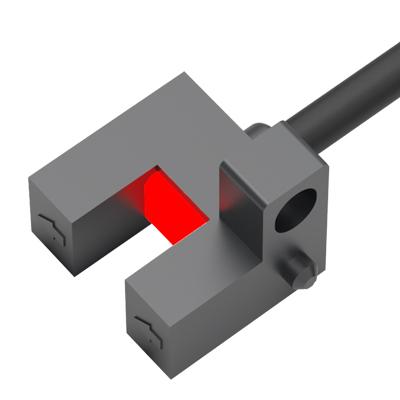

Model F24N output type NPN output detection object 1.2x0.8mm opaque object detection distance 5mm groove width response frequency 2KHZ repetition accuracy below 0.03mm indicator light action display light (red) protection circuit surge protection circuit, Polarity reverse protection action configuration is equipped with two independent outputs (ON when blocking and ON when entering), power supply voltage DC5-24V, output light source GaAs infrared light emitting diode (940nm), ambient temperature action: -25-+70 ℃, storage: -40-85 ℃ (non icing and non condensation), connection method, wire lead out type (standard

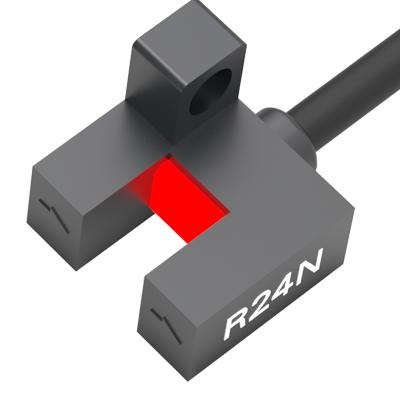

Model R24N output type NPN output detection object 1.2x0.8mm opaque object detection distance 5mm groove width response frequency 2KHZ repetition accuracy below 0.03mm indicator light action display light (red) protection circuit surge protection circuit, Polarity reverse protection action configuration is equipped with two independent outputs (ON when blocking and ON when entering), power supply voltage DC5-24V, output light source GaAs infrared light emitting diode (940nm), ambient temperature action: -25-+70 ℃, storage: -40-85 ℃ (non icing and non condensation), connection method, wire lead out type (standard

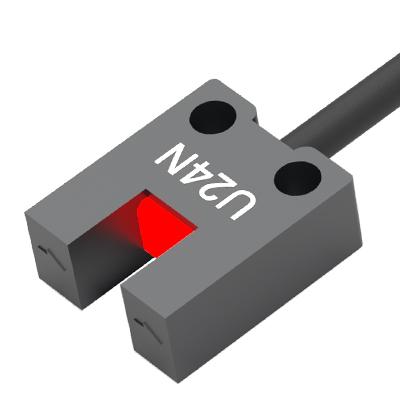

Model U24N output type NPN output detection object 1.2x0.8mm opaque object detection distance 5mm groove width response frequency 2KHZ repetition accuracy below 0.03mm indicator light action display light (red) protection circuit surge protection circuit, Polarity reverse protection action configuration is equipped with two independent outputs (ON when blocking and ON when entering), power supply voltage DC5-24V, output light source GaAs infrared light emitting diode (940nm), ambient temperature action: -25-+70 ℃, storage: -40-85 ℃ (non icing and non condensation), connection method, wire lead out type (standard
