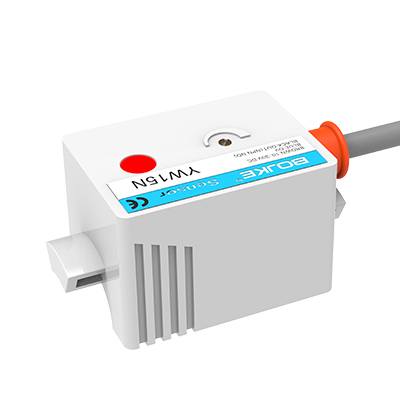

| Model number | YW15N |
|---|---|
| Output type | NPN output |
| Iterative range accuracy | ±0.2mm or less |
| Detecting object | liquid |
| Action light | Action light (red) |
| Supply voltage | 10~30VDC |
| Accept an assignment | 0.6~5mm |
| Current consumption | Below 12mA |
| Suitable conduit | The wall thickness is less than 1.5mm φ6~φ13mm |
| Protection loop | Surge protection circuit, short circuit protection, polarity reverse protection |
| Vibration (durability) | 10~55HZ Up and down amplitude 1.5mmX, Y, Z directions 2h |
| Impact (durability) | 500m/s Three times in each direction X, Y and Z |
| Protective construction | IP66 |
| Connection mode | Lead out type (standard line length 2M) |
| Housing material | Heat-resistant ABS |

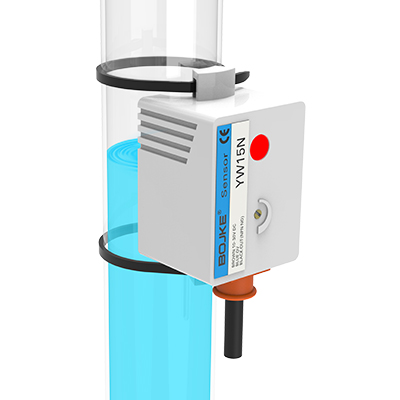

Features: not affected by tube wall material and liquid color, sensitivity can be adjusted
Pipe outer diameter: the wall thickness does not exceed 1.5mm, and the outer diameter is between 6 and 13mm
Output mode: NPN normally open
