Liquid level detection sensor

location:Home? Product center? Liquid level detection sensor

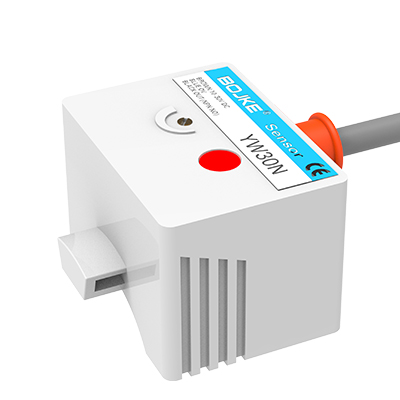

YW30N

YW30N
  • Technical Parameter

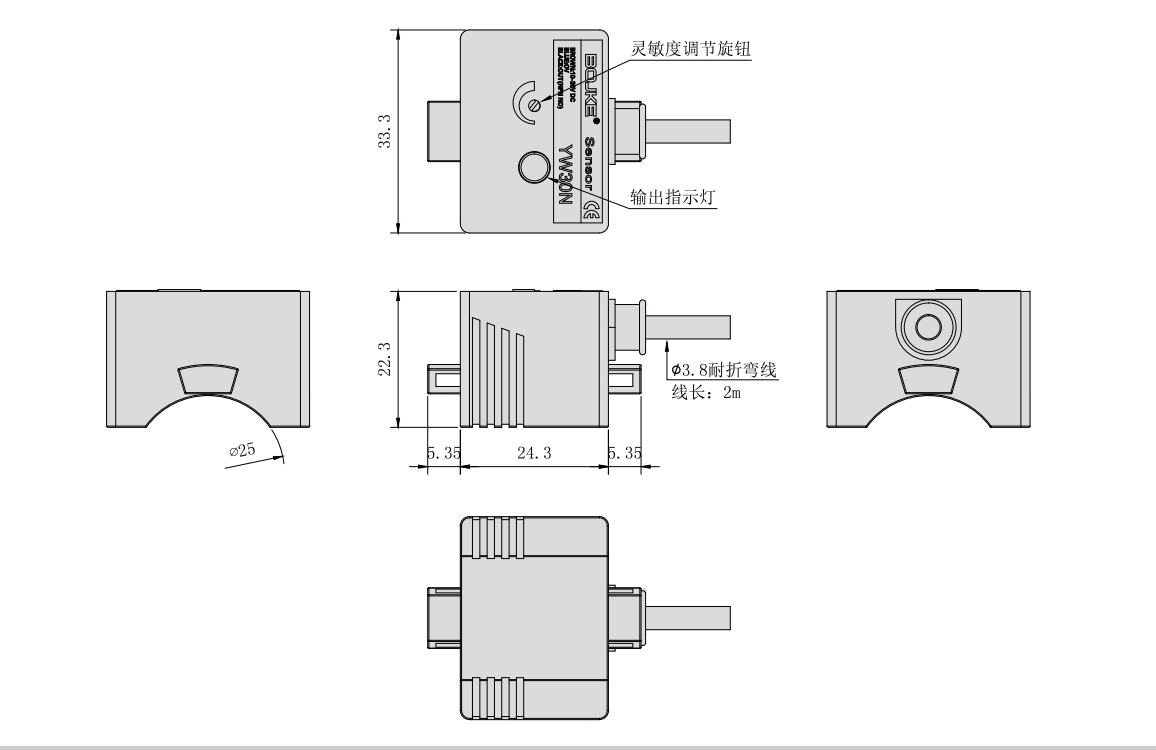

  • Dimensional structure
  • Performance characteristics
Model numberYW30N
Output typeNPN output
Iterative range accuracy±0.2mm or less
Detecting objectliquid
Action lightAction light (red)
Supply voltage10~30VDC
Accept an assignment0.3~3mm
Current consumptionBelow 12mA
Suitable conduitThe wall thickness is less than 2mm φ14~φ26mm
Protection loopSurge protection circuit, short circuit protection, polarity reverse protection
Vibration (durability)
10~55HZ Up and down amplitude 1.5mmX, Y, Z directions 2h
Impact (durability)500m/s Three times in each direction X, Y and Z
Protective constructionIP66
Connection modeLead out type (standard line length 2M)
Housing materialHeat-resistant ABS


Features: not affected by tube wall material and liquid color, sensitivity can be adjusted

Pipe outer diameter: the wall thickness is not more than 2mm, and the outer diameter is between 14 and 26mm

Output mode: NPN normally open
