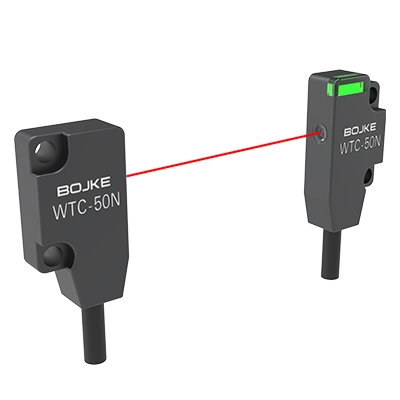

| Model | WTC-50N |
|---|---|
| Output type | NPN output |
| Detection direction | Side thrashing |
| Detect objects | Less than 15% of the working distance |
| Detection distance | 500mm |
| Reaction time | 1ms |
| Light | Power LED: Red Output LED: Green |
| Maximum output current | 50mA |
| Consumes current | Less than 25mA |
| Supply voltage | DC12-24V |
| Light source | 650nm red modulated light |
| Ambient temperature | When operating: -25-+70°C When storing: -40-85°C (no freezing, no condensation) |
| Connection method | Conductor exit type (standard conductor length 2M) |
Features: side detection, two-color molding technology, thickness as thin as 4.5mm
Detection distance: 500mm
Output mode: NPN, object output model detected
