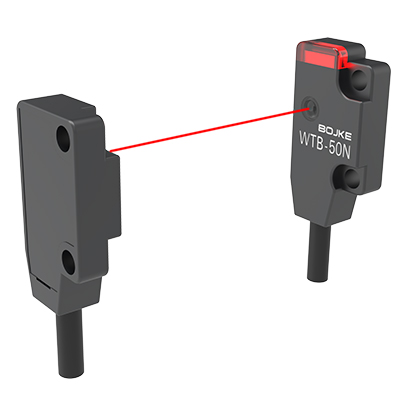

Model | WTB-50N |
---|---|
Output type | NPN output |
Detection direction | Head-to-head shooting |
Detect objects | Less than 15% of the working distance |
Detection distance | 500mm |
Reaction time | 1ms |
Light | Power LED: Red Output LED: Green |
Maximum output current | 50mA |
Consumes current | Less than 25mA |
Supply voltage | DC12-24V |
Light source | 650nm red modulated light |
Ambient temperature | When operating: -25-+70°C When storing: -40-85°C (no freezing, no condensation) |
Connection method | Conductor exit type (standard conductor length 2M) |
Features: front inspection, two-color molding technology, thickness as thin as 4.5mm
Detection distance: 500mm
Output mode: NPN, object output model detected
