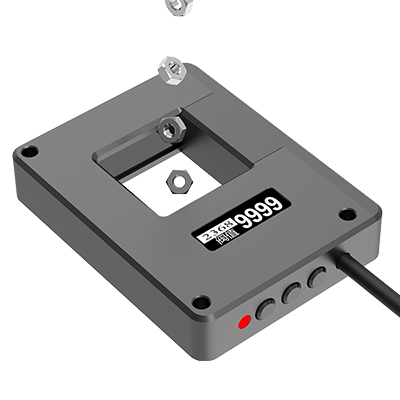

| Model number | CK-25ZW |
|---|---|
| Output type | NPN output |
| Supply voltage | 12~24V DC±10%，F(xiàn)loating p-p 10% to Under the |
| Power dissipation | Less than 750mW |
| illuminant | Infrared 940nm |
| sensitivity | 5 speed adjustable |
| Working mode | Single output/count output |
| Detection output | NPN collector open output, maximum input current 100mA The maximum external voltage is 30V DC, and the residual voltage is less than 1V |
| Output state | Normally open/normally closed can be switched |
| Delay function | Normal output/output delay/one output, three output modes are optional Two delay times are adjustable: 1ms to 9999ms |
| Reaction time | Less than 900us |
| External control | Low level pulse: current environment learning/current count clear zero |
| display | OLED screen display |
| Protection circuit | Power polarity reverse protection; Output short circuit or overload protection |
| Shock resistance | 10 to 55HZ, double amplitude: 1.5mm,X,Y,Z axis for 2 hours each |
| Ambient temperature | -25~+55℃, without freezing |
Features: Chinese operation interface, stable detection of various small objects, delay can be set
Window size: 25x25mm
Output mode: NPN normally open normally closed can be switched
