| Model | ER3-HP |
|---|---|
| Output type | PNP output |
| Detection method | Diffuse reflection, through-beam (determined by fiber type) |
| Detection distance | Diffuse reflection 200mm, through-beam 1200mm |
| Output status | Normally open/normally closed switchable |
| Reaction time | less than 500us, |
| Protection circuits | Power supply polarity reverse polarity protection; Output short-circuit or overload protection |
| Output delay | Dial delay, ON: 40ms delay OFF: normal output |
| Supply voltage | 12-24DC±10%, floating P-P 10% or less |
| Light source | Red, 4-element light-emitting diode body |
| Consumes current | Less than 30mA |
| Ambient temperature | -25 to +55°C, no freezing |

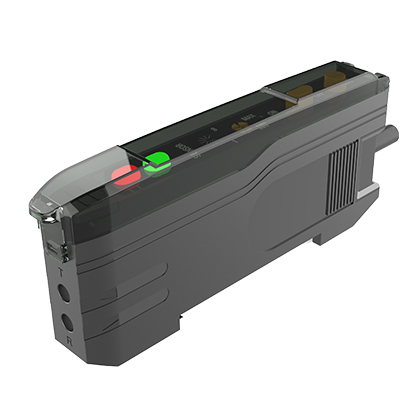

Amplifier type: knob fiber amplifier
Features: The knob type is easier to operate, and the sensitivity can be adjusted manually
Product advantages: built-in delay function selection, normally open and normally closed output mode
