Model | ER2-18ZW |
---|---|
Output type | NPN output |
Detection method | Diffuse reflection, through-beam (determined by fiber type) |
Detection distance | Standard: diffuse reflection 200mm, through-beam 700mm Long distance: diffuse reflection 300mm, through-beam 1200mm |
Output status | Normally open/normally closed switchable |
Reaction time | High speed: less than 100us Standard: less than 500us Long distance: less than 3ms |
Protection circuits | Power supply polarity reverse polarity protection; Output short-circuit or overload protection |
Output delay | Normal output/output extension/delayed output/primary output, four output modes are optional |
Supply voltage | 12-24DC±10%, floating P-P 10% or less |
Light source | Red, 4-element light-emitting diode body |
Consumes current | Less than 30mA |
Ambient temperature | -25 to +55°C, no freezing |

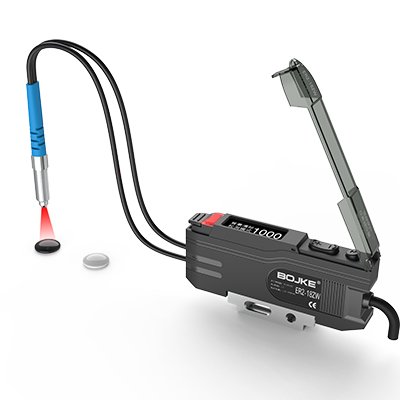

Amplifier type: Chinese fiber amplifier
Features: Full Chinese panel display, one-key quick setting, quick response

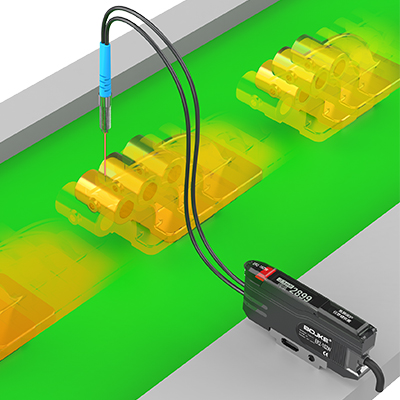

Product advantage: Detection of fast-moving small parts with functions such as background elimination/automatic maintenance
