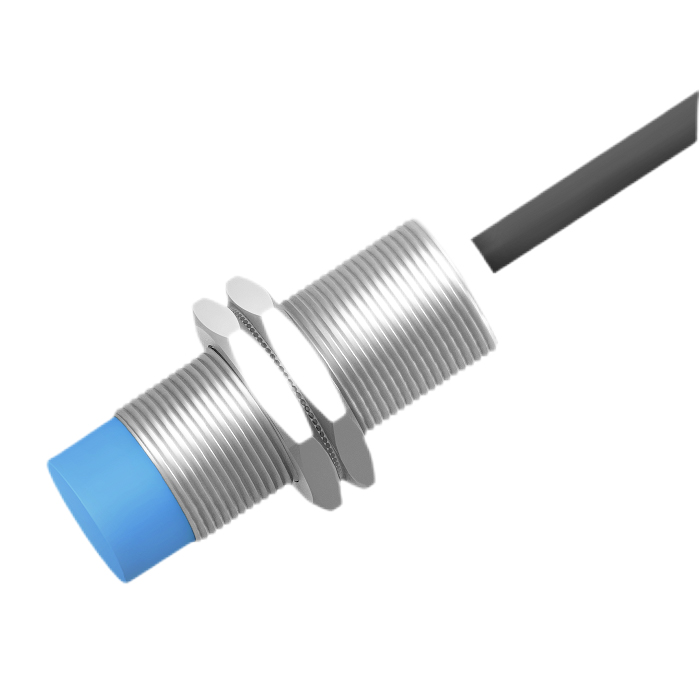

| Model | SR18-08NON |
|---|---|
| Output type | NPN is normally open and non-flush |
| size | M18 |
| Detection distance | 8mm±10% |
| Housing material | Nickel-copper alloy |
| Operating voltage | 10~30V DC(Ripple<10%) |
| Pressure drop | <1.5V |
| Load current | 200mA |
| No-load current | <10mA |
| Leakage current | <0.01mA |
| Switching frequency | 500HZ |
| Repeatability | <3.0%(Sr) |
| Hysteresis | <15%(Sr) |
| Sensing surface material | PBT |
| Ambient temperature | -25~+70℃ |
| Degree of protection | IP67 |
Features: dedicated IC design, strong stability
Detection distance: M18,8mm±10%
Output mode: NPN normally open, non-flush installation
