Type

4 outputs, wire lead-out type

Control the output

4 outputs, equipped with short circuit protection, equipped with automatic anti-interference function

Light source

RGB tricolor, 4-element light-emitting diode body

Reaction time

C mode 130us

Output selection

LIGHT-ON/DARK-ON (SWITCH SELECTION)

Display indicator

Operation indicator: red light-emitting diode, OLED screen display

Detection method

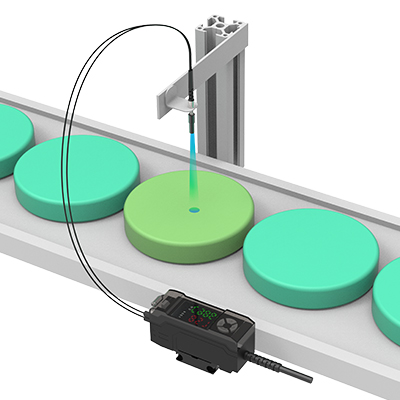

Color auto-match detection C, different colors automatically select different lights Source detection

Time delay function

Disconnect delay timer / turn on delay timer / single timer / start delay single timer, selectable. The meter display can be selected in duration: 1ms to 9999ms

Control the output

NPN Open Current Collector 24V, Max 100mA (Main Components Only)

Current consumption up to 40mA (residual voltage when expansion parts are connected: 1.5V or less (when inflow current is 50mA)

Power supply

Between 12 and 24VDC±10%, floating ratio (P-P): 10% max Level 2

Working environment brightness

Incandescent lamp: The illumination of the light-receiving surface is up to 3,000lx or less

Power

Consumption

Maximum voltage: 24V

Vibration resistance

10 to 55Hz, dual amplitude: 1.5mm, X, Y, Z axes are 2 hours respectively

Ambient temperature

-10 to +55°C, no freezing
