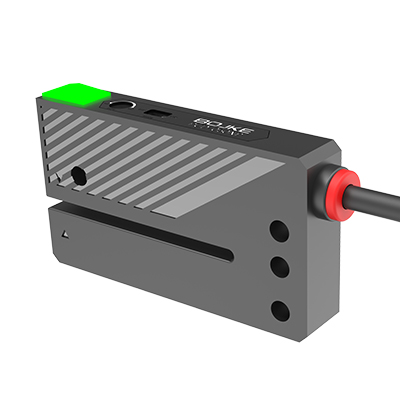

| Model number | PUD-050NP |
|---|---|
| Output type | NPN output |
| Detecting object | Opaque label |
| Detection distance | 2mm |
| Response frequency | 10KHZ |
| Control output | Black line: NPN output White line: PNP output |
| Supply voltage | 10-30V DC |
| Current consumption | 40mA max |
| Light source | Infrared light-emitting diode |
| Ambient brightness | Sunlight: 5000lx max； Incandescent lamp: 3000lx max |
| Ambient humidity | Action: -35~85%RH, save: -35~85%H |
| Ambient temperature | Action: -20~70℃ Storage: -25~75℃ (no icing, no condensation) |
| Protective construction | IEC-IP64 |
| material | PC |
Features: Stable detection of non-transparent labels, sensitivity can be adjusted
Label spacing: not less than 2mm
Output mode: NPN and PNP can be switched, the switching frequency can reach 10KHz
