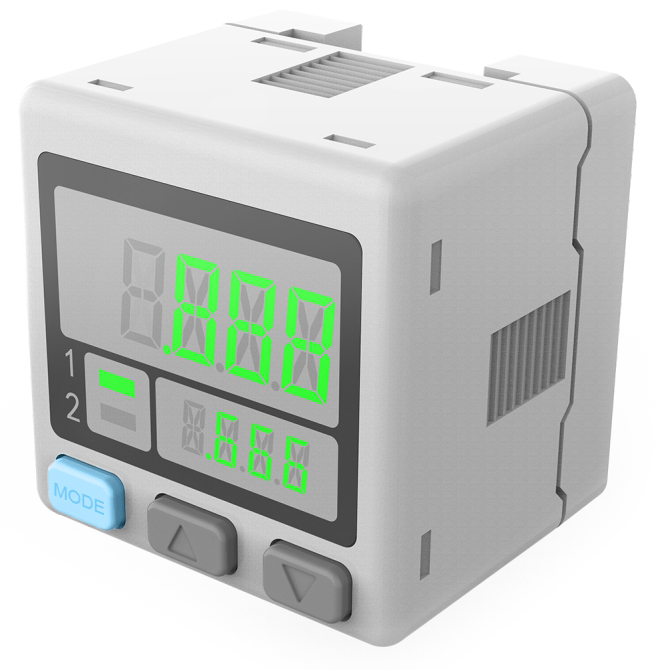

| Model | PS-1H-NA-M5 |
|---|---|
| Interface type | M5 female thread |
| class | High pressure type |
| Type of pressure | Standard pressure |
| Rated pressure range | -0.1~1.0MPa |
| Set the pressure range | -0.101~1.01MPa |
| Pressure resistant | 1.5MPa |
| Suitable fluids | Non-corrosive gas |
| Operating voltage | 12-24VDC |
| Output type | NPN+ analog current |
| Switch action | Normally open/normally closed can be set |
| Should be poor | 1digit |
| Repeatability | 0.2%F.S. <±2digits |
| Response time | Min: 2.5ms / Max: 5000ms, configurable |
| Consumes current | <30mA |
| Maximum input current | <100mA |
| Residual voltage | <2V |
| Output voltage/current | 2.4~20mA |
| zero | <4mA±5%F.S. |
| amplitude | <17.6mA±5%F.S. |
| linearity | <±1%F.S. |
| Output/load resistance | 250Ω |
| ON voltage | <0.4V DC |
| OFF voltage | 5~30V DC or open circuit |
| Input resistance | 10KΩ |
| Enter the time | >1ms |
| Temperature characteristics | <±1%F.S.(20℃) |
| Ambient temperature | Working time: -10°C~50°C; Storage: -10°C~60°C (no freezing) |
| Ambient humidity | Working hours: 35%~85% RH; When stored: 35%~85% RH (non-condensing) |
| Housing material | PBT, pressure hole: SUS303 |
| Connection method | 2 meters 4 core standard wire |
Interface mode: M5 internal thread
Pressure range: -0.101~1.01MPa
Output mode: NPN+ analog current, normally open/normally closed can be set
